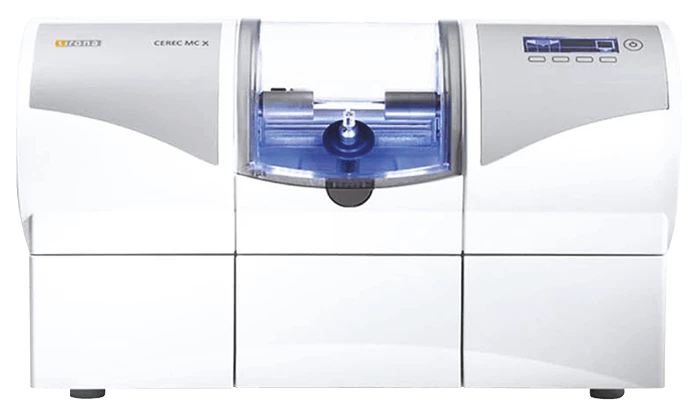

CEREC MC X Milling Machine

With CEREC MC, you can achieve 100 % precise results at an appealing price.

Read more Enquire now

Whether inlays, onlays, crowns or veneers – you can create full-contour individual tooth restorations with block sizes of up to 20 mm. You will be able to work with the majority of chairside materials. With CEREC MC, you can achieve 100 % precise results at an appealing price.



Advantages of CEREC MC
  • Fully anatomical, individual tooth restoration with a block size of up to 20 mm
  • Perfect for CAD/CAM beginners



For best results

The CEREC milling and grinding units and the CEREC software are optimally synchronised with one another. Grinding and milling the restoration design is extremely precise, giving the restorations smooth surfaces. Even very fine fissures are very precisely prepared and the edges are very even. Our new milling and grinding units can also dry mill, making solid zirconia restorations in a single visit possible!



  • Fast and precise fabrication of various materials
  • Possibility to produce patient-individual surgical guides and abutments/screw-retained crowns



Printer Icon

3

CEREC grinding and milling units for a wide range of indications.

Clock Icon

4 - 12 min

is how long it typically takes to grind/mill a single dental restoration, depending on the indication and material.

Ruler Icon

25 µm

the precision provided by the CEREC milling units.



“Treatment often used to take a long time. With CEREC I got a complete crown in just one visit – without a temporary or follow-up visits. I call that service!”
Meike Tramitz, patient from Gießen



Outstanding restorations now also with full contour zirconia

The new CEREC grinding and milling machines come equipped with a device to vacuum up the mill shavings as well as new precision tools. The new machine can be used for both wet and dry processing, one straight after the other. Dry milling saves a considerable amount of time, as the restoration does not need to be dried before sintering – thus enabling the chairside procedure. And there is no difference in quality between dry and wet milling processes. The dry dust can easily be removed using a short, integrated cleaning program.



  • Milling machine
  • Complete chair side spectrum
  • Precise and fast
  • Milling at top speed – you only need approx. 11 minutes to create a crown
  • Milling accuracy of ± 25 µm
  • Maximum block size of 15,5 x 19 x 40mm
Videos

How to insert a block correctly into the MC X Milling Unit

How to connect the radio module HW8614/F2 to the milling unit

Zirconia rocks: Dry milling in super slow motion

)

How big is the MCX milling unit?

Width 700 x Height 425 x Depth 420 (mm)

How long does the MCX take to mill a restoration?

A MCX unit achieves precise results and you only need approximately 11 minutes to create a crown.

What restorations can be fabricated with a MCX milling unit?

Inlay/onlays, crowns, veneers, bridges, abutments and surgical guides can be fabricated.

What size restoration can the MCX fabricate?

The MCX can create fully anatomical single tooth restorations up to a block size of 40mm.

Does the MCX require any other services other than a power supply?

No, the unit has an integrated water tank and does not require compressed air.

Observe country-specific Regulations. Some countries have legal regulations which require regular safety inspections of electrical devices or systems by the operator.

Perform maintenance regularly. Have maintenance performed on your unit annually by trained technical personnel / a service engineer.

Observe error messages. You must observe error messages shown on the display. If the error message does not disappear even after you have performed the prompted action, contact our servicing team.

Machine care Intervals:

Once a month:

  • Change the filter
  • Clean the clamping cones of the instruments according to the cleaning set instructions
  • If the jets of water do not strike the instruments, carefully remove any foreign particles from the water nozzles with a probe.

Do not confuse the block screw with the ball pressure screw

When operating a CEREC 3 milling unit and a CEREC MC X grinding unit in the same room, be careful not to confuse the block screw of the CEREC 3 with the ball pressure screw of the CEREC MC X.

Using the tank cap opener

If you find the tank cap, tank drain or filter insert hard to open by hand, use the tank cap opener.

Wear of the ball pressure screw

The high clamping forces cause wear of the ball pressure screw.

Replace the ball pressure screw every 500 clamping operations.


Changing the water

Damage to the pump and grinding drives

An excessively high ceramic content in the cooling water will damage the pump and grinding drives. Change the water regularly.

When the water is due to be changed, a message window appears on your monitor to remind you that it is time to change the water.

Preventing odours

All grinding additives contain a biologically degradable preservative. Despite this, however, odours may still develop under unfavourable conditions.

Observe the following:

  • Change the water at least once a week.
  • With ambient temperatures above 25°C, change the water every 2 to 3 days to prevent foul odours.
  • Drain the tank if you do not intend to operate the unit for more than one week.
  • Clean the tank if the odours recurs.
  • Add DENTATEC grinding additive and fill the tank up to the brim with water. Let it stand for at least 24 hours and then rinse it out thoroughly with water once again.

Damage to surfaces

When undiluted, DENTATEC grinding additive etches plastic surfaces and can cause discolouration.

  • Do not place DENTATEC on the unit.
  • Do not spill DENTATEC.

Use only DENTATEC as a grinding additive.

Water tank MC X


Foaming is not permissible. If any cleaning agents are used, this will create foam, which is not permitted. Do not use any cleaning agents.

To change the water, make sure:

✔ The unit is switched on.

✔ No matching process is running.

Then proceed as follows:

1. Pull out the water tank at the front of the unit.

2. Open the drain opening.

3. Drain the water tank.

4. Turn the tank cap counter-clockwise and take it off. If you find the tank cap hard to open by hand, use the tank cap opener.

5. Remove the filter insert from the tank and clean the filter thoroughly under running water.

6. Rinse the water tank.

7. Insert the cleaned filter with handle into the tank and press it firmly onto the base in the floor of the tank.

8. Close the drain opening.

9. Add approx. 75 ml of DENTATEC to the tank.

10. Fill the tank with water until the filter insert is completely immersed (up to the bottom edge of the cover thread, approx. 3 litres).

11. Wait briefly until the filter insert is completely soaked then add appropriate amount of water.

12. Close the water tank by tightening the tank cap (B) clockwise by hand. Do not use the tank cap opener for this.

13. Push the water tank back into the housing.


Changing instruments

Regular replacement of instruments

Change the instruments as soon as the system prompts you to do so.

1. In the software, navigate to the system menu, and click on the "Configuration" button.

2. Click on the "Devices" button.

3. Click on the unit whose instruments you wish to replace.

4. Click on the "Start" button. The motors travel to the change position for the instruments. The dialog box for changing the instruments opens.

5. Press the catch of the grinding chamber door and open the door.

Risk of injury on instruments

If you put your hand in the grinding chamber, you could injure it on the instruments. Be careful not to brush against the instruments with your hand. Apply the torque wrench as shown.


6. Loosen the worn-out or defective instrument with the torque wrench and pull it out manually.

Do not grease the instrument. Insert the new instrument into the motor mount by hand. Tighten the corresponding chuck with the torque wrench until a clicking sound can be heard.


Faulty grinding results: Interchanging instruments leads to faulty grinding results.

7. Close the grinding chamber door.

8. Select the instrument(s) you have inserted on the PC monitor and click "Start". You can also select the instruments on the grinding unit (up/down arrow) and confirm with "Start".


Cleaning cooling water nozzles

The cooling water nozzles in the grinding chamber always must be kept free of lime and grinding dust deposits. The corresponding cooling water jet must always strike the instrument accurately.

✔ The cooling water nozzles are dirty.

Clean the nozzles with a cleaning wire and the SPRAYVIT syringe (if available).

Use only suitable instruments. Do not use any instruments from CEREC 2 or CEREC 3 units.


Replacing a defective instrument

If an instrument breaks during the production phase, the corresponding motor travels to the change position. A dialog box which marks the side with the broken instrument with a red cross then opens. This means the instrument is broken.

To replace a defective instrument:

1. Change the defective instrument as described above.

2. Select the instrument which you have inserted.

3. Press the "Start" button.


Care and cleaning agents

Cleaning surfaces

Use only cleaning and care agents which have been approved by Sirona.

Do not allow liquids to run into the ventilation slots.

Disinfecting

Wipe surfaces down with a surface disinfectant (wiping disinfectant). Observe the manufacturer’s instructions regarding restrictions for use.

Protection against medicaments

Due to their high concentrations and the substances they contain, many medicaments can dissolve, etch, bleach or discolour surfaces.

Damage to the surface

Clean the surface immediately with a moist cloth and a cleaning agent.

Cleaning

Remove dirt, grime and disinfectant residue regularly using mild, commercially available cleaning agents.


Replacing the main fuses

Electric shock: Disconnect the power plug at the unit end before replacing the fuses.

Use only fuses of the same type in the fuse holder.


The power plug must be disconnected.

1. Use a screwdriver to carefully pry off the cover of the fuses on the back side of the unit.

2. Pull out the fuse holder.

3. Replace the defective fuses.

4. Reinsert the fuse holder.

5. Close the cover.


Changing the filter

Change the filter regularly. Clean the filter regularly and change it immediately when damaged, otherwise change it every three months.

If a message appears stating that the water pressure is too low, you must clean the filter or, if it is damaged, replace it immediately.


Make sure that:

✔ The tank is empty, see below section Removing water from the unit.

Then proceed as follows:

1. Pull out the water tank at the front of the unit.

2. Turn the tank cap counter-clockwise and take it off. If you find the tank cap hard to open by hand, use the tank cap opener.

3. Taek the filter insert out of the tank.

4. Rinse the water tank

5. Insert the new filter with handle into the tank and press it firmly onto the base in the floor of the tank.

6. Fill the tank, see above section Changing the water.

7. Close the water tank by tightening the tank cap clockwise by hand. Do not use the tank cap opener for this.

8. Push the water tank back into the housing.

Clean the filter approximately every 12 to 15 units under running water, but at least with every water change.


Removing water from the unit

You must remove water from the unit if you will not be using it for a long period of time or wish to transport it.

Make sure that:

✔ No grinding process is running.

Then proceed as follows:

1. Switch off the unit.

2. Pull out the water tank at the front of the unit.

3. Drain the water out of the water tank through the drain opening and reinsert the water tank in the unit.

4. Switch the unit on.

5. Pump button active at power-up. The "Pump" button appears on the display when the grinding unit is switched on. You can start or stop the water pump by pressing this button.

6. Press the "Pump" button to switch the pump on. The water pump then starts pumping the water out of the unit. Let the pump run until no more water escapes from the nozzles.

7. Press the "Pump" button to switch the pump off.

8. Pull out the water tank and empty it.

9. Push it back into the housing.


Using the tank cap opener

Risk of damage to the tank

Use the tank cap opener only for opening the tank cap and tank drain. Do not use the tank cap opener for closing the tank cap. To close the tank cap and tank drain it is sufficient to tighten them clockwise by hand.


Opening the tank cap

Make sure that:

✔ The water tank has been pulled out and drained.

Then place the tank cap opener on the tank cap as shown and take off the tank cap by unscrewing it counter-clockwise.



Opening the tank drain

Make sure that:

✔ The water tank has been pulled out.

Then place the tank cap opener on the filter drain as shown, and take off the filter drain by unscrewing it counter-clockwise.
