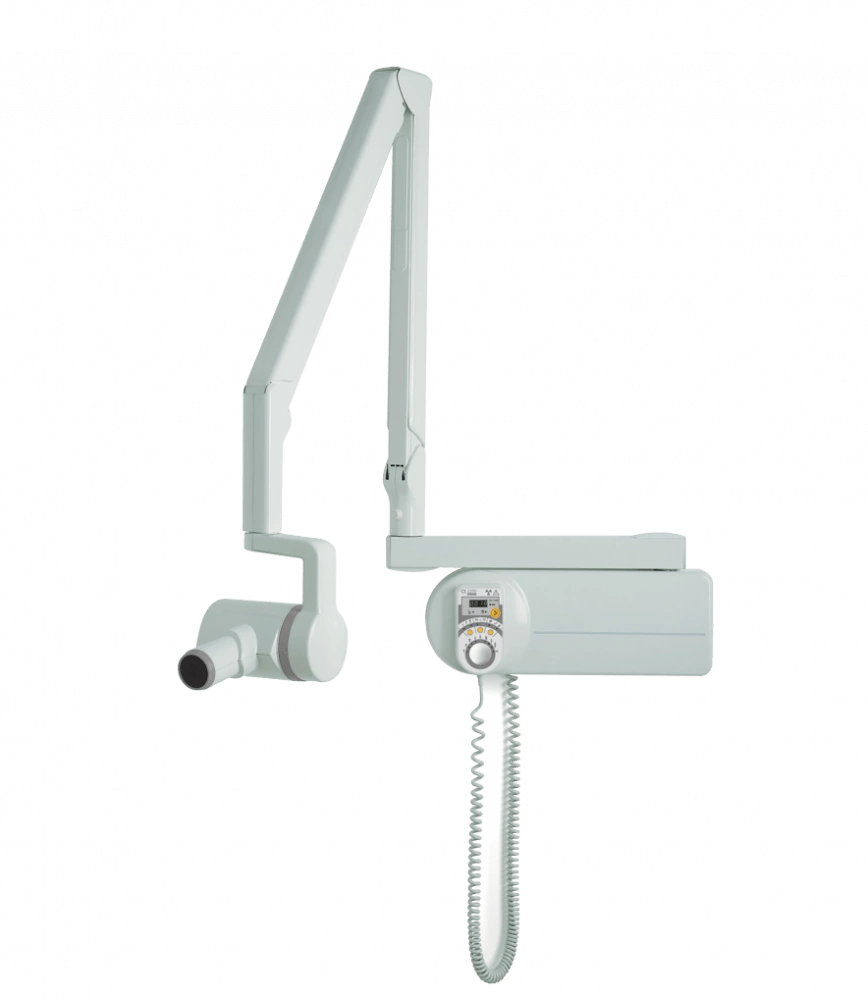

Carestream 2200
Maximise diagnostic power while streamlining your workflow
The CS 2200 maximizes your diagnostic abilities and improves your workflow with its intuitive and user-friendly design.
A model of simplicity
The CS 2200 maximizes your diagnostic abilities and improves your workflow with its intuitive and user-friendly design. Featuring a very high-frequency (DC) x-ray generator to ensure superior image quality and reproducibility, the CS 2200 is also designed to improve safety conditions.
The CS 2200 System generates as much as 30% less radiation than traditional x-ray generators—thereby ensuring the safety of your patients and staff. In addition, the system’s electronic timer determines the optimal dose for patients based on exam settings, so you can work confidently with no worries of overexposure.
Compatible with both film and digital imaging applications, the CS 2200 System works the way you do. Available in five available mounting options, two types of timers, and three arm lengths, the system can be easily adapted to match the configurations of your practice.
Our very high-frequency generator ensures superior image quality. Equipped with a focal spot of 0.7 mm, the CS 2200 System produces sharp, focused images each and every time. And the unit’s short exposure times make it an ideal product to use with our full range of dental digital radiography systems.
Compact and easy-to-use, the CS 2200 System’s handheld timer allows users to quickly select the right exposure settings. Pre-programmed to automatically calculate settings, the timer intuitively determines the appropriate exposure time based on anatomical region, patient bodyweight and detector type.
If you're about to invest in dental equipment, you could be able to combine your costs and benefit from Advance!
Eligible customers will receive a rebate based on their merchandise* and clear aligner spend, which can be offset against your monthly equipment repayment cost.
Possible Cause
The unit is disconnected.
Action
Connect the unit.
Possible Cause
Fuse F1 burnt out or is defective.
Action
Change the fuse.
Possible Cause
The circuit breaker is OFF.
Action
Turn ON the circuit breaker.
Possible Cause
The control unit is disconnected.
Action
Connect the control unit.
Possible Cause
Fuse F1 burnt out or is defective.
Action
Change the fuse.
Possible Cause
The control unit is defective.
Action
Call our service team on 0800 028 4749.
Possible Cause
The generator is cooling.
Action
Wait until message I01 and the red LED on the control key disappear.
Possible Cause
The radiology control key is defective.
Action
Call our service team on 0800 028 4749.
Possible Cause
The wrong exposure preset programme is being used.
Action
Change the preset programme.
Setting the Mode
Setting the mode allows you to modify the exposure times according to the sensitivity of the used imaging system.
To set the mode, follow these steps:
1. Press
to select the preset mode to be modified.
2. Press and hold
simultaneously for at least three seconds until the display blinks.
3. If necessary, modify the setting by rotating
until the desired setting is displayed.
4. To validate, press and hold until “COPY” is displayed.
5. To abort, press on the selection knob shortly.
Possible Cause
The generator is not positioned correctly.
Action
Adjust the generator position.
Possible Cause
The exposure time is too short.
Action
Increase the exposure time.
Possible Cause
The development time is too short.
Action
Increase the development time (See the manufacturer’s instructions).
Possible Cause
The developer is too cold.
Action
Heat the developer.
Possible Cause
The developer is too old or diluted.
Action
Replace with a new developer.
Possible Cause
The preset mode is not selected properly.
Action
Verify your exposure settings (See the exposure procedure).
Possible Cause
The receptor is not correctly positioned.
Action
Reposition the receptor.
Possible Cause
The unit is not correctly installed.
Action
Call our service team on 0800 028 4749.
Possible Cause
The wrong exposure preset programme is being used.
Action
Change the preset programme.
Setting the Mode
Setting the mode allows you to modify the exposure times according to the sensitivity of the used imaging system.
To set the mode, follow these steps:
1. Press to select the preset mode to be modified.
2. Press and hold simultaneously for at least three seconds until the display blinks.
3. If necessary, modify the setting by rotating until the desired setting is displayed.
4. To validate, press and hold until “COPY” is displayed.
5. To abort, press on the selection knob shortly.
Possible Cause
The exposure time is too long.
Action
Reduce the exposure time.
Possible Cause
The development time is too long.
Action
Reduce the development time (See the manufacturer’s instructions).
Possible Cause
The developer is too hot.
Action
Cool the developer.
Possible Cause
The developer is too concentrated.
Action
Adjust the concentration or change developer.
Possible Cause
The preset mode is not correctly selected.
Action
Check your exposure settings (See the exposure procedure).
Possible Cause
Cooling cycle: this message can appear during intensive use period.
Action
Do not switch OFF the equipment. The information message disappears as soon as the system reaches a satisfactory temperature.
If you switch OFF the system, the microprocessor does not calculate the cooling time. For safety reasons, it considers that the system has not gone through the cooling cycle.
Possible Cause
Request for X-ray tube seasoning.
Action
See the “User Mode” section of the CS 2200 User Manual.
Possible Cause
The radiography control button was released before the exposure end. The display indicates the remaining exposure time. Based on this time, you must decide whether to develop the film or make another exposure).
Action
Quickly press on the selection knob to stop the alarm.
Possible Cause
The radiography control was enabled while the unit was being powered ON.
Action
Switch OFF, then restart the system. If the problem persists, contact our service team on 0800 028 4749 and stop using the equipment.
Possible Cause
Exposure time control problems.
Action
Switch OFF, then restart the system. If the problem persists, contact our service team on 0800 028 4749 and stop using the equipment.
Possible Cause
kV voltage error.
Action
Switch OFF, then restart the system. If the problem persists, contact our service team on 0800 028 4749 and stop using the equipment.
Possible Cause
Filament voltage error.
Action
Switch OFF, then restart the system. If the problem persists, contact our service team on 0800 028 4749 and stop using the equipment.
Possible Cause
Problem with voltage to the main power supply or to the chemical capacitor.
Action
Switch OFF, then restart the system. If the problem persists, contact our service team on 0800 028 4749 and stop using the equipment.
Possible Cause
System error (problems with the power board microprocessor).
Action
Switch OFF, then restart the system. If the problem persists, contact our service team on 0800 028 4749 and stop using the equipment.
Possible Cause
Problem with the IC bus, the connection between the control panel and the power board.
Action
Switch OFF, then restart the system. If the problem persists, contact our service team on 0800 028 4749 and stop using the equipment.
Yes, this system will work with all three formats: film, phosphor plates and sensors.
Yes, the system has various arm length options to suit your surgery setup.
Yes, the system is has simple controls and pre-set exposure times depending on the location of the x-ray in the patients dentition.
Yes, the x-ray will be tested by our engineer after installation.
The below describes the maintenance tasks you must perform for your CS 2200.
Generator
Check that:
Mechanical support
Check that:
Control timer unit and electrical installation
Check that:
Operation
Be careful not to be exposed to ionising radiation
Check that:
Control timer unit self-test
To enable the self-test, you must switch ON the CS 2200 system.
If a check result is not satisfactory, stop using the equipment and contact our service team 0800 028 4749.
We recommend that a general inspection of the unit be carried out by one of our service engineers.
You must first clean the system before disinfection.
To clean the system, follow these steps:
Caution
