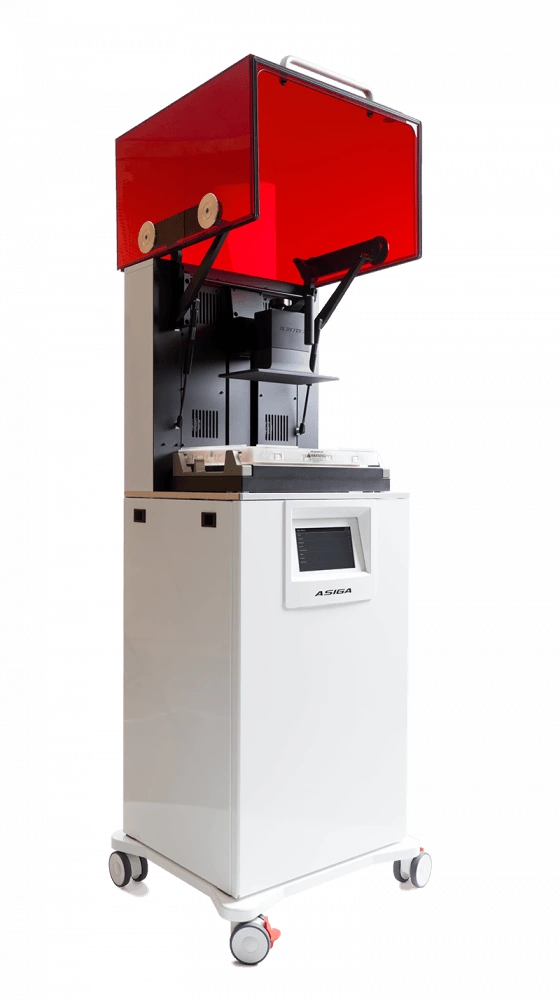

Asiga Pro 4k
Upgrade with 4K DLP imaging technology and super-fast print
This product is part of Henry Schein's Fast Track range
Fast Track allows dental practices to acquire dental equipment quickly, with delivery possible within one week.
Say goodbye to long waiting times and say hello to a hassle-free experience.
Robust engineering, beautifully delivered. The PRO 4K combines the latest 4K imaging technology with Asiga’s well proven Smart Positioning System (SPS™) to produce a build volume 3x larger than our desktop 3D printers. Precision, reliability, speed and an Open Material System all come as standard to provide production continuity for the most demanding digital manufacturing environments.
The PRO 4K incorporates pixel shifting technology to increase part accuracy and surface definition without affecting printing time. 4K mode is a standard feature on every PRO 4K. Native pixel mode is also available for scientific applications requiring deterministic pixel behaviour.
Industry Proven Performance - Precision, reliability and speed for the most demanding production applications.
The Latest 4K DLP Imaging Technology - Coupled with custom engineered optics for precision pixel placement.
4K Super Fast Print Mode - Using pixel shifting technology, Asiga's 4K mode reduces the pixel size to increase part accuracy and resolution without impacting build area or printing time.
Proprietary Layering Processes - Repeatable precision with Asiga's proven Process Monitoring Technologies - SPS, Internal Radiometer, precise material curing.
Beautifully Engineered - User defined interface and operability for ease of use.
SPS™ Smart-Positioning-System Technology - Asiga's unique SPS™ process guarantees every layer is formed accurately. Accurate layer formation is the key to achieving consistently accurate results in any production environment.
Open Material System - Select from a range of Asiga materials with the added benefit of using any material from any manufacturer.
Why 385nm UV LEDs? - 3D printing materials cure faster at deeper UV wavelengths (385nm) reducing XY scattering and over-cure. The result is consistent accuracy, production reliability and the ability to process water-clear materials.

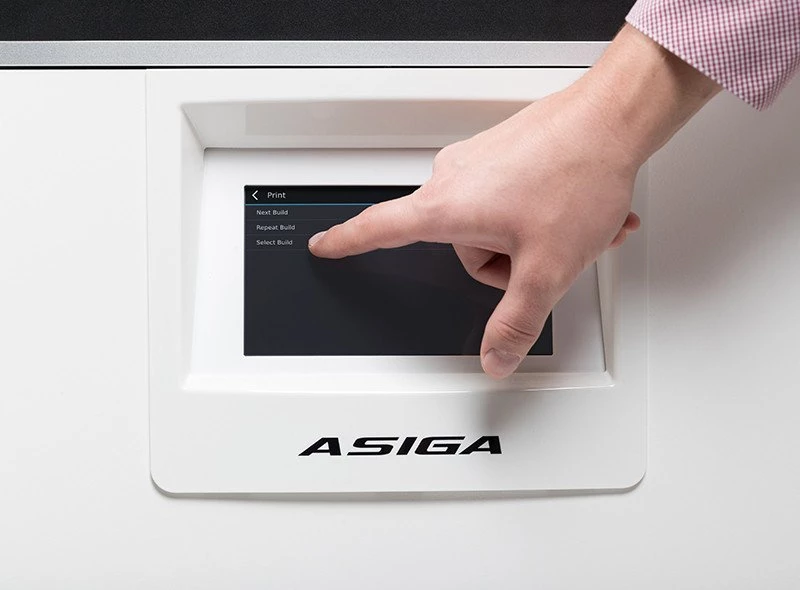

Seamless Integration - Simple touch screen user interface and multiple connection options for seamless integration into your digital workflow.
| Product specification | PRO 4K65 | PRO 4K80 |
|---|---|---|
| Build Volume X, Y, Z | 176 × 99 × 200mm 6.94 × 3.9 × 7.87 inches | 217 × 122 × 200mm 8.54 × 4.8 × 7.87 inches |
| Pixel Size - 4K mode | 46µm | 56µm |
| Pixel Size - Native mode | 65µm | 80µm |
| Technology | DLP | DLP |
| LED Wavelength | 385nm (high power UV LED) or 405nm | 385nm (high power UV LED) or 405nm |
| Material Compatibility | Asiga materials, 100% Open Material System — use any suitable third party material | |
| Software | Asiga Composer software. Lifetime updates included | |
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp file format) | |
| Network Compatibility | Wifi, Wireless Direct, Ethernet | |
| Power Requirements | 90-264VAC, 50/60Hz, 600Watts, (100V - 6Amp Max. 240V - 2.5Amp) | |
| System Sizing | 465 × 510 × 1345mm / 140 kg 18.3 × 20.1 × 53.0 inches / 309 lb | |
| Packed Sizing | 900 × 700 × 1540mm / 205 kg 35.4 × 27.6 × 60.6 inches / 452 lb | |
| Warranty | 12 months manufacturer's warranty | |
| Technical Support | Unlimited lifetime technical support included | |
| Bundle Includes | 3D printer, Composer software, 1kg Asiga material, 2L build tray, Asiga Flash post-curing chamber, calibration toolkit | |
